ABDT-LZT Plastic Rotameter
Designs with simple structure and plastic tubing allow for direct observation of the media flow
Characteristics
Size:DN15-300(½”–12”）
Max pressure:0.6MPa/87psig
Max temperature:60℃

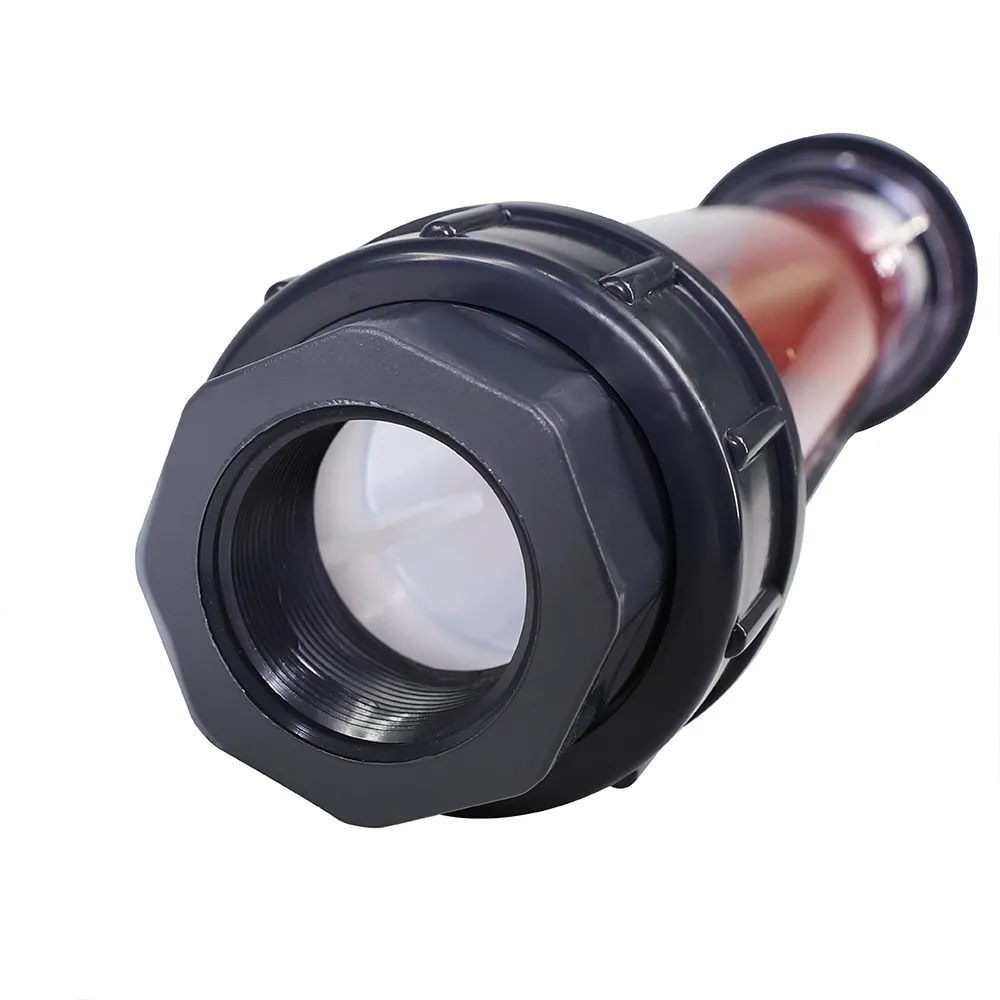

Connection:Flange,G and NPT threads,solvent cement sockets
Option:upper and lower limit alarm
Overview

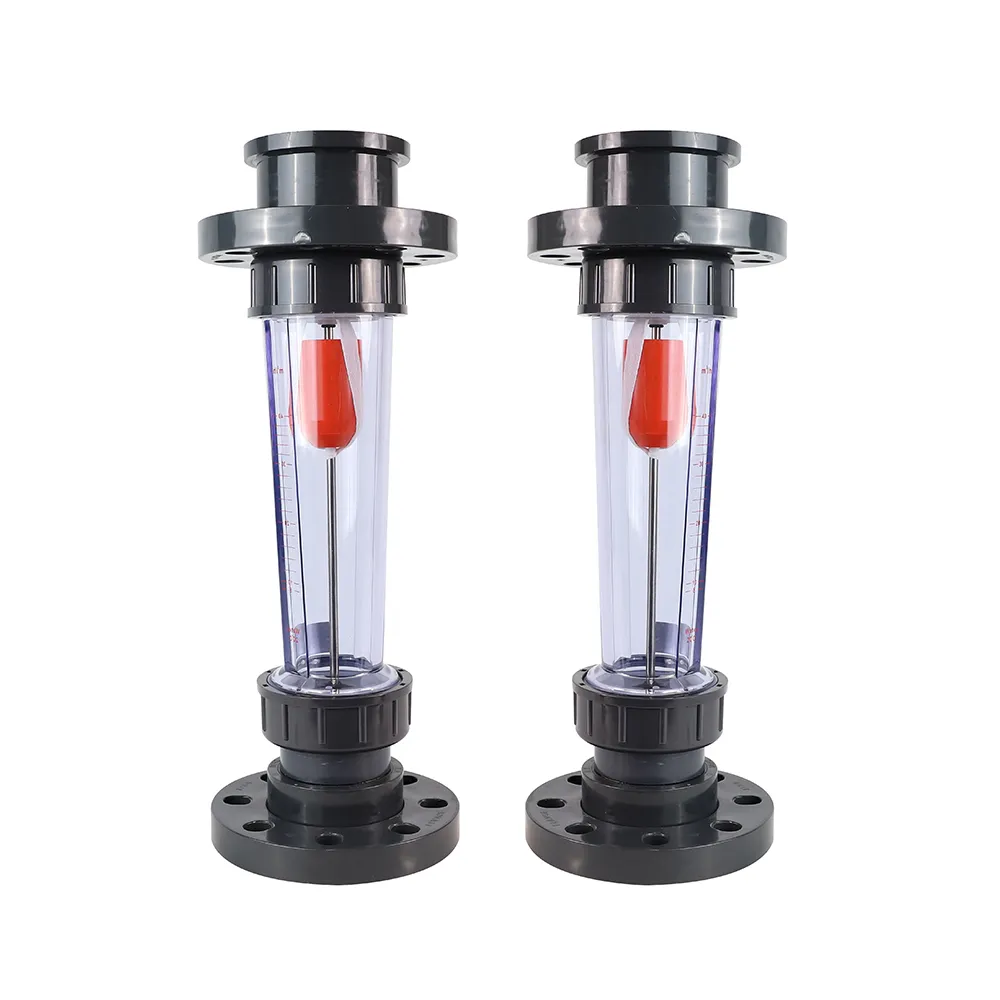

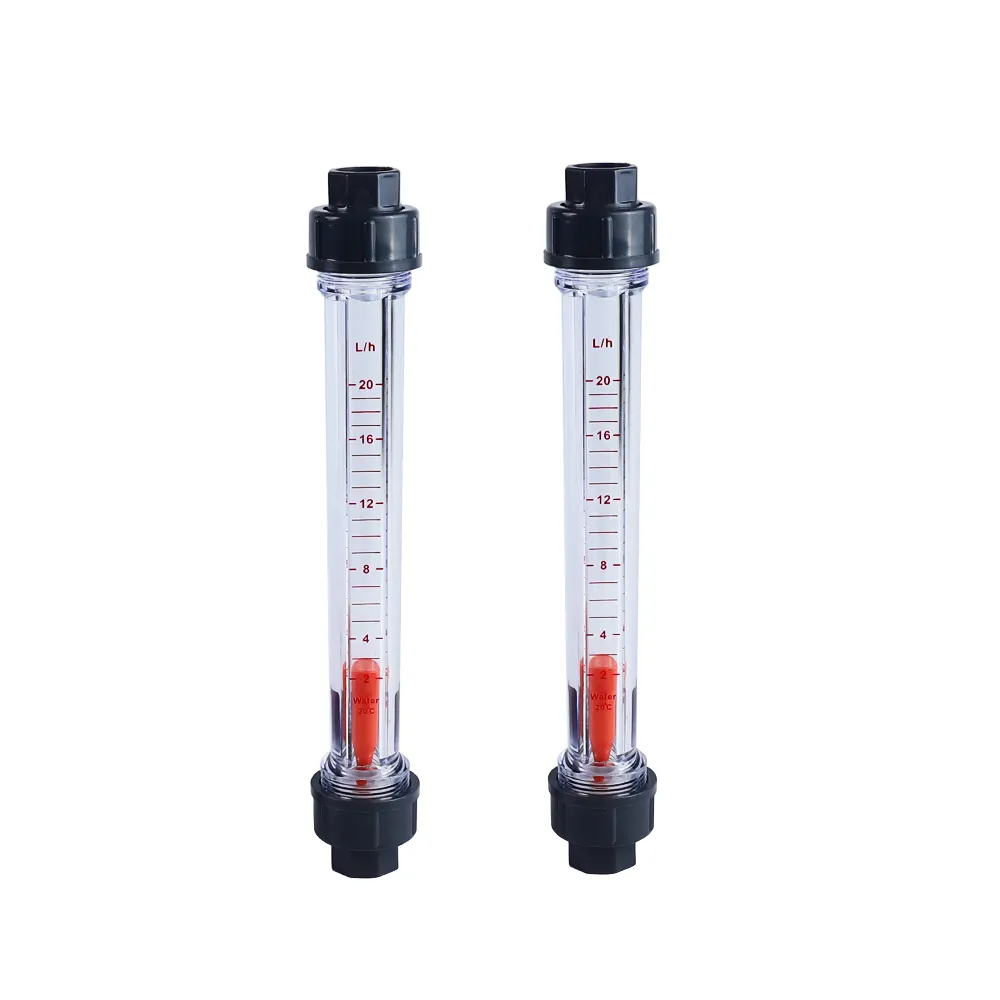

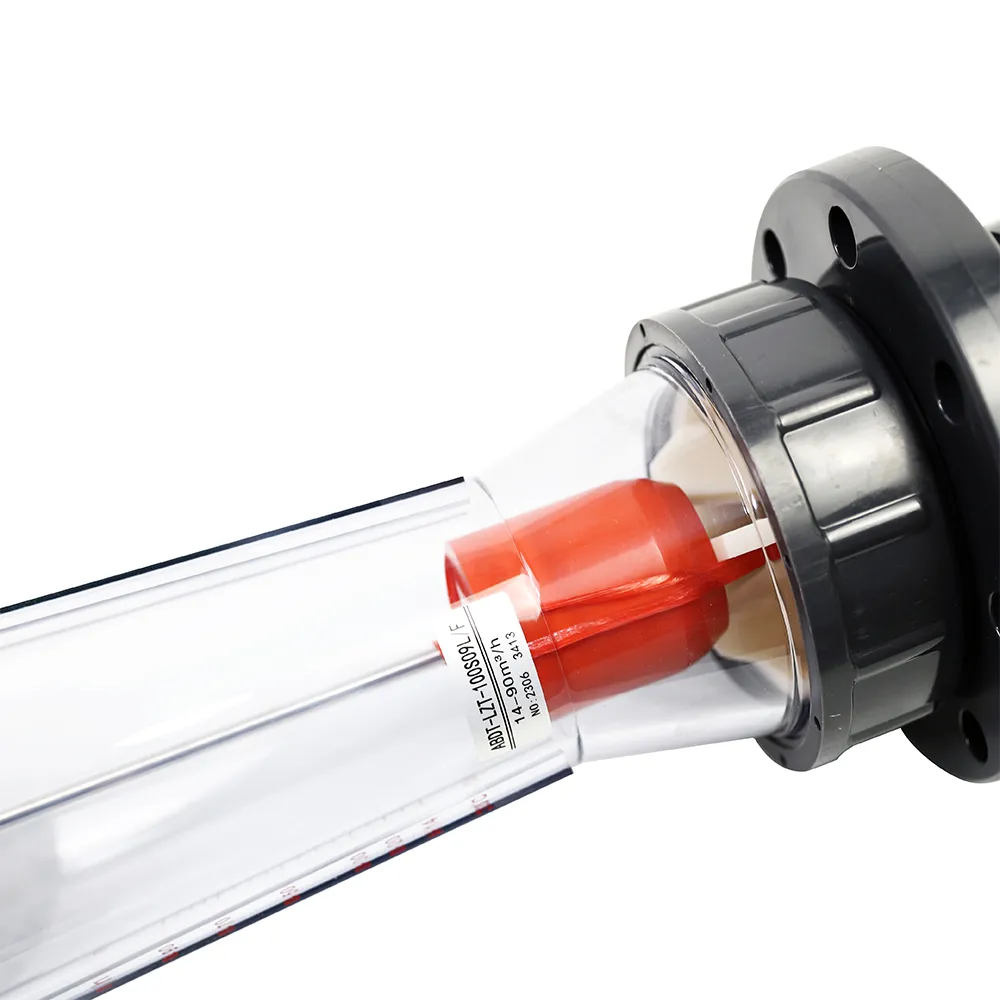

ABDT-LZT-S series plastic tube float flowmeter features a simple structure,lightweight design,corrosion resistance,durability,and is non-toxic and odorless. It is easy to use and primarily applied in industries such as chemical,light industry,medical,food,environmental protection,and others,for measuring the flow of single-phase,non-pulsating liquids. The flowmeter mainly consists of a transparent plastic tapered tube,with a smaller end at the bottom and a larger end at the top,mounted vertically. Inside the tube,a float moves up and down,along with components such as screw nuts,connecting tubes,guide rods,and arresting devices. There are two main types:short tube and long tube models. Based on the connection method,the flowmeter can be classified as bell and spigot joint,threaded connection,or flanged connection.Features
- Lightweight Design:Made from plastic materials, making the device lightweight, easy to install, and maintain
- Transparent Casing:Commonly equipped with a transparent shell, allowing for easy observation of flow rates
- Cost-Effective:More affordable than metal flowmeters, making it suitable for budget-conscious applications
- Flow Measurement Accuracy:Designed for applications requiring low to moderate precision, typically used in non-critical measurement scenarios
- Option:upper and lower limit alarm
Measuring principle | Variable area float |
Measured media | Liquids |
Accuracy | ±4 % |
Size | DN15-300(½”–12”） |
Repeatability | ±0.25FS |
Measuring range | 2L/h-400m³/h |
Max process pressure | 6barg/87psig |
Process temperature | 0 to +60°C / -40 to +140°F |
End connection | Flange, G and NPT threads, solvent cement sockets |
Option | Upper and lower limit alarm |
