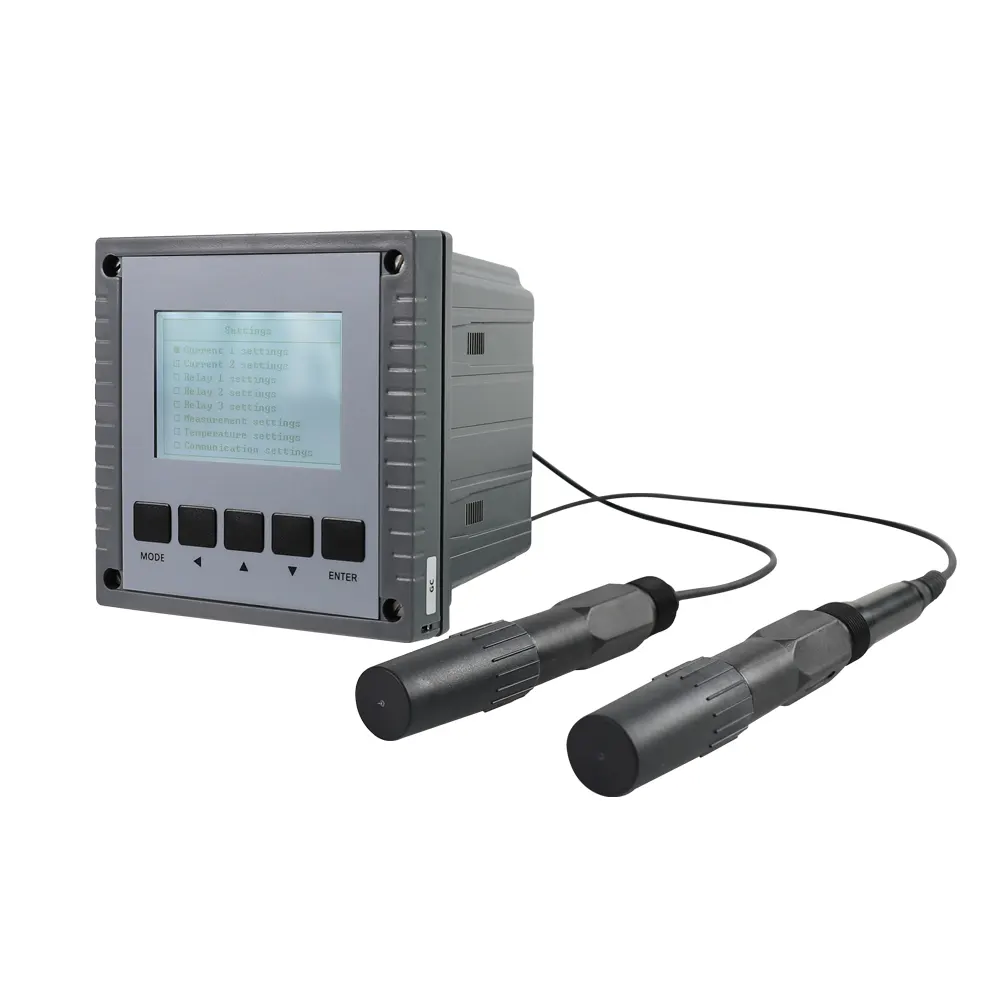

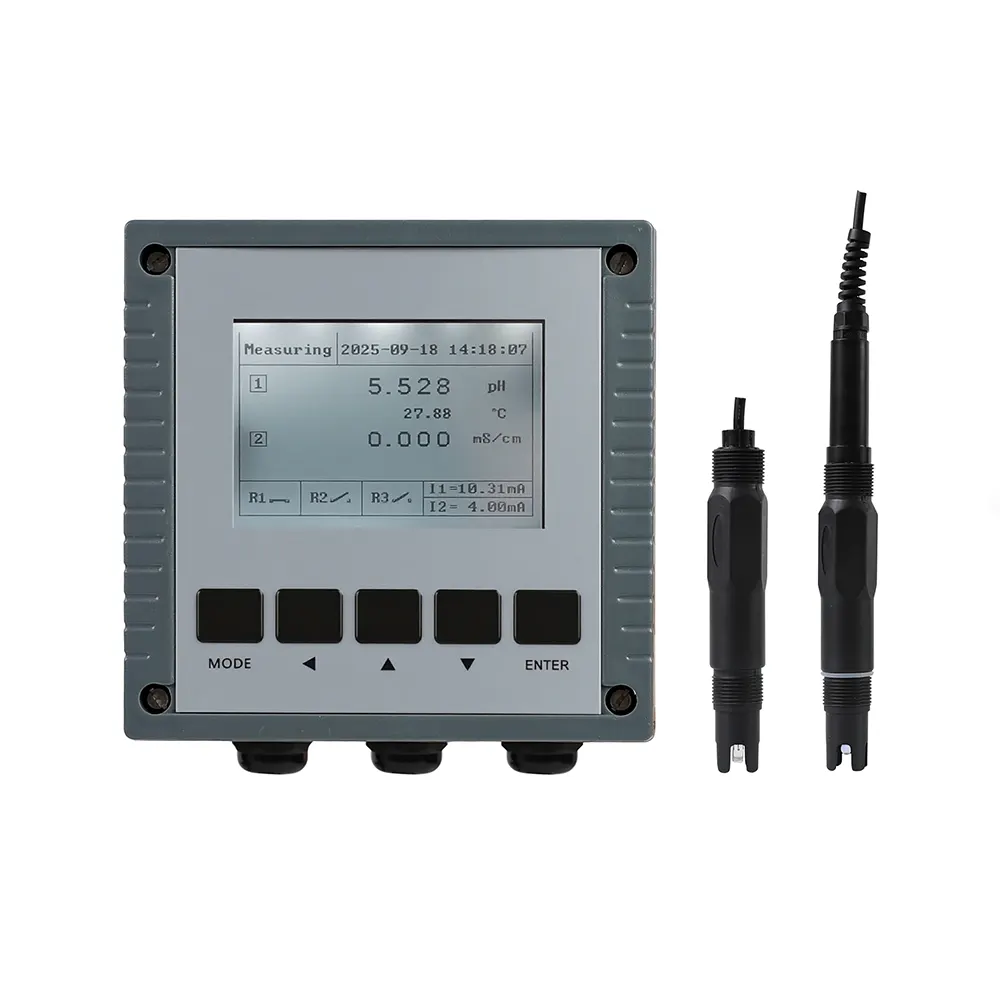

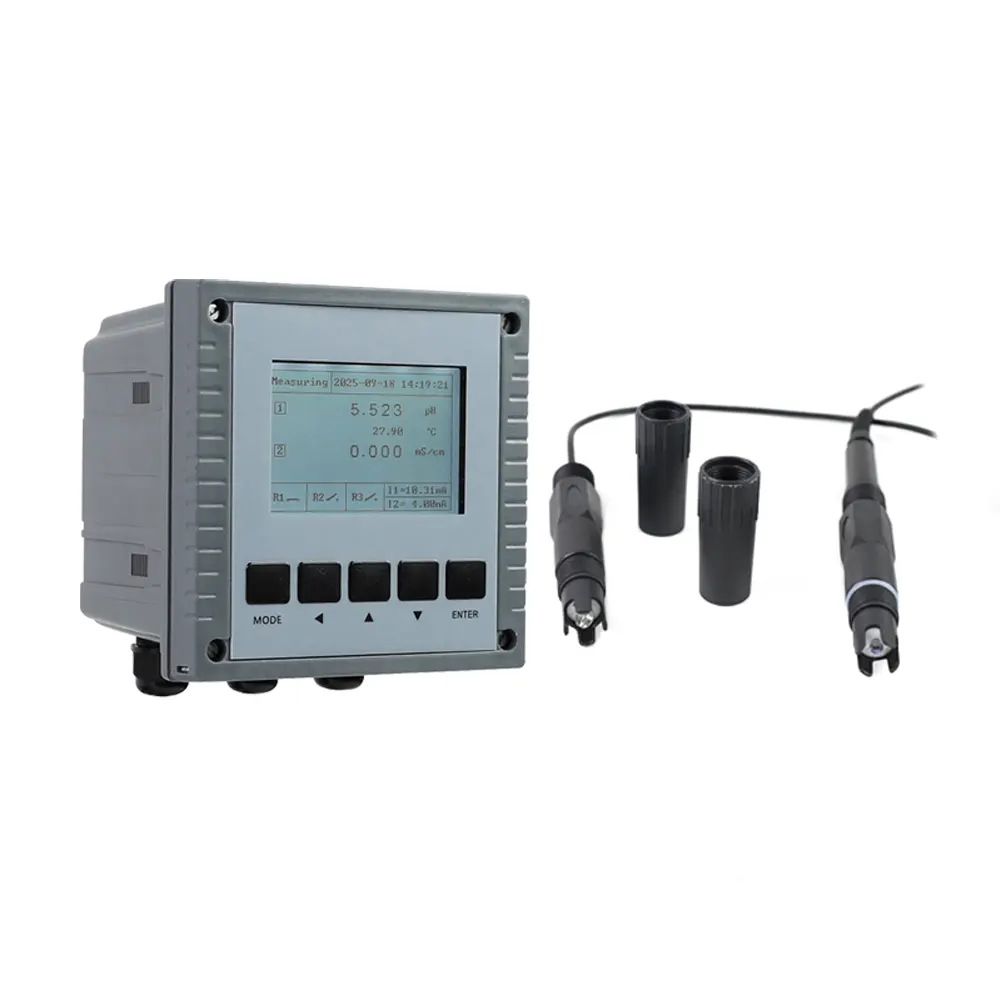

ABDT-pH IntelligentMulti-parameter Controller

Overview

The ABDT pH meter adopts industrial standard design, which is stable and reliable, and integrates multiple parameter monitoring functions,This device can be applied to different types of digital sensors,This device supports one RS485 output and two 4-20mA outputs, with optoelectronic isolation and strong anti-interference ability. One way RS485 Digital output, convenient for users to network. Three way isolated relay output, users can set upper and lower limits to control the device

Features

• The secondary instrument can be applied to different types of digital sensors, including pH sensor, conductivity sensor, dissolved oxygen sensor, residual chlorine sensor, turbidity/sludge concentration sensor, ion sensors, COD sensor, chromaticity sensor, chlorophyll sensor, blue green algae sensor, oil in water sensor, tracer sensor, transparency sensor, corrosion rate sensor, etc.
• The controller can be panel, wall or pipe mounted.
• The controller supports one RS485 output and two 4-20mA outputs, with optoelectronic isolation and strong anti-interference ability. One RS485 digital output, convenient for users to network. The relay output with three-way isolation allows users to set upper and lower limits to control the on/off status of the equipment.
• The controller provides two current outputs. The maximum load is 500Ω.
• The controller provides 3 relays. It can pass though a maximum of 5A/250VAC or 5A/30VDC.
