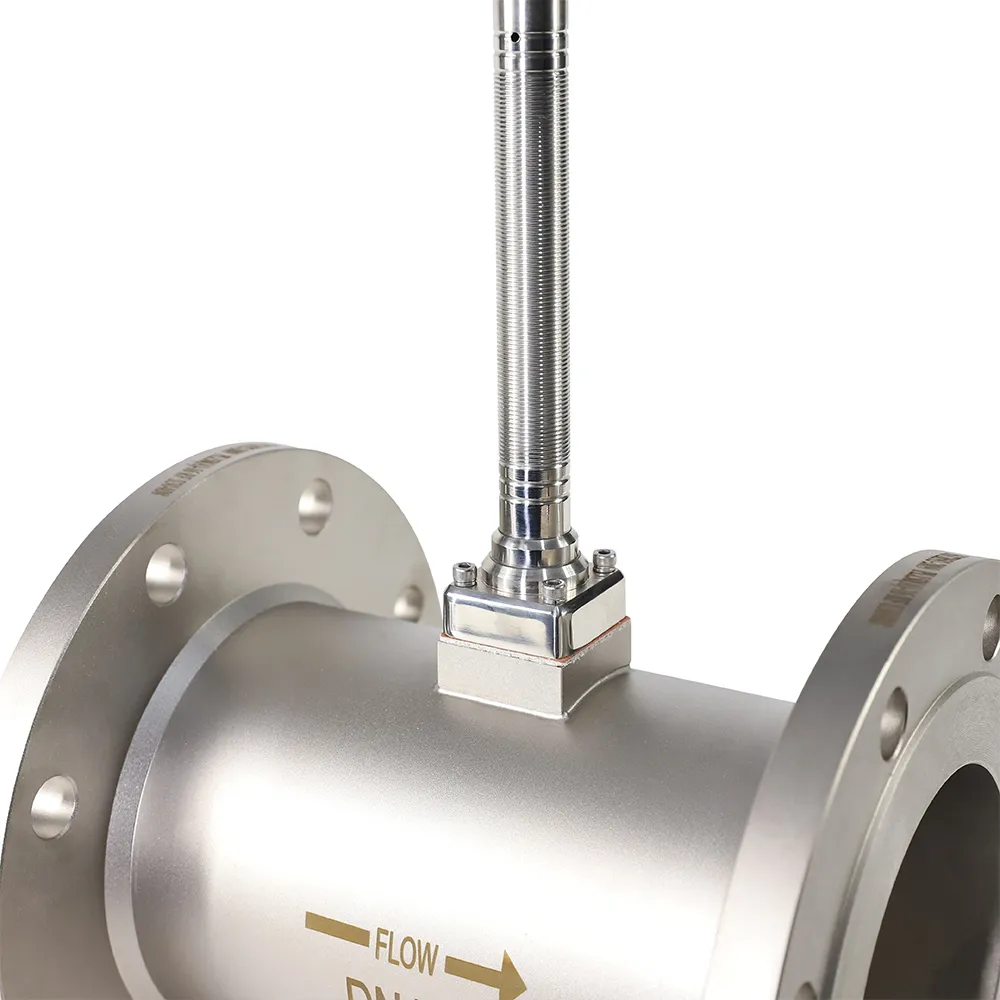

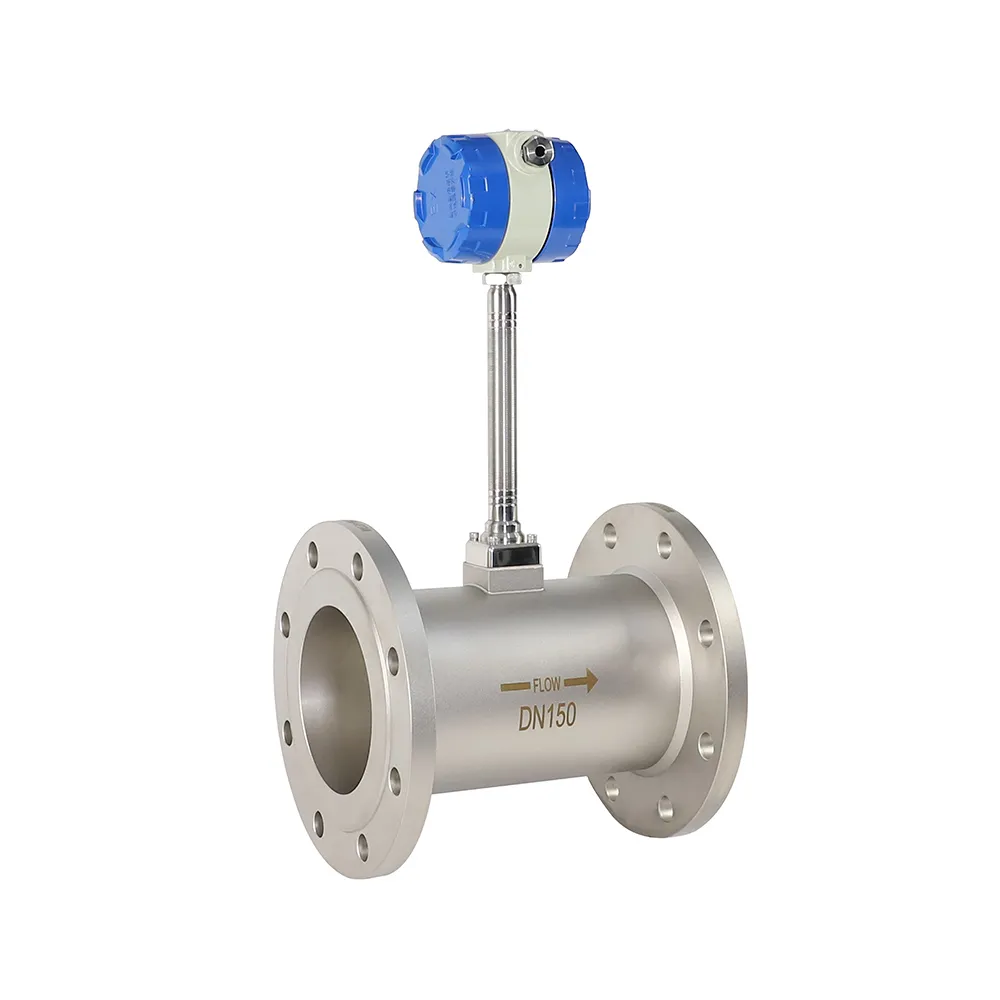

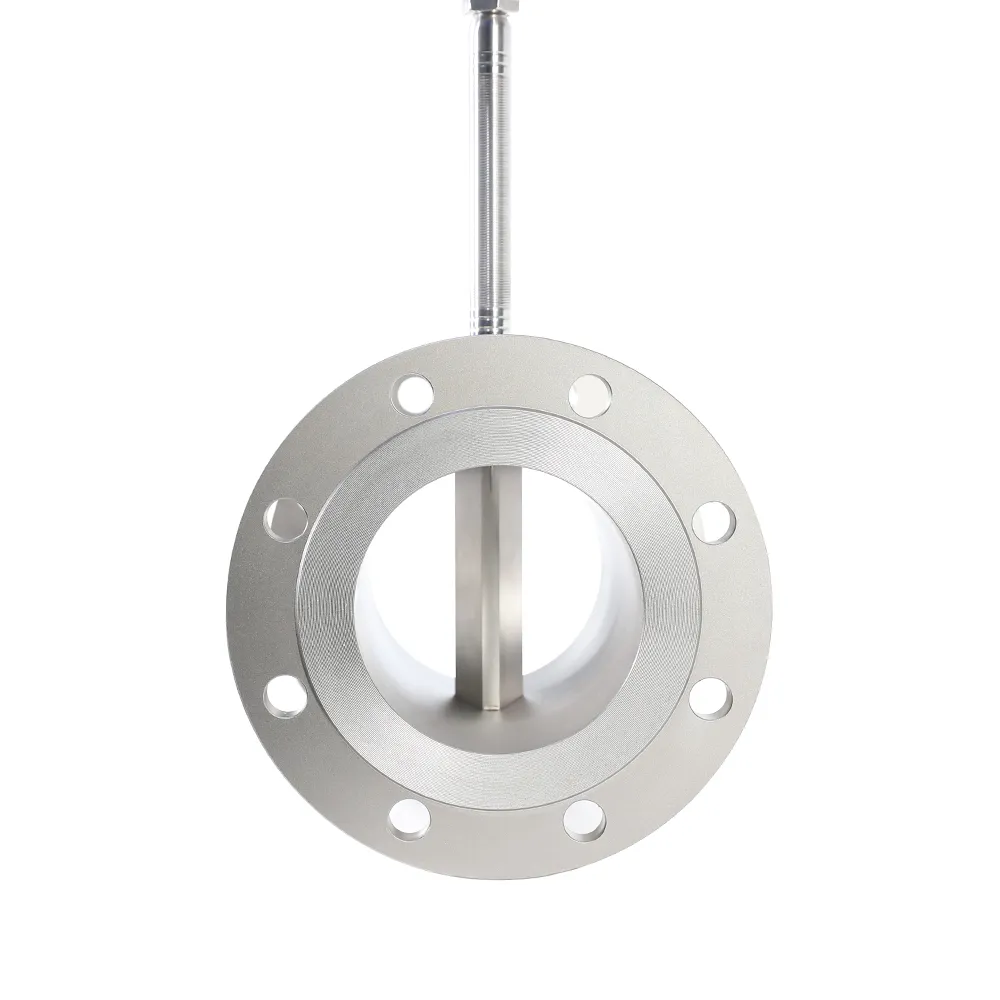

ABDT-LUGB Vortex Flowmeter Flange Installation without Display
Used for medium volume flow measurement, with mass flow calculated using external temperature and pressure data
Characteristics
Diameter:DN15-DN800/ ½…32″
Process temperature:-40°C to 420°C /-40°F to 788°F
Max process pressure:PN100/1450 psig
Accuracy:1.0%,1.5%
Output signal:Pulse,frequency
Flange:GB/ANSI/ASME/DIN/JIS Std

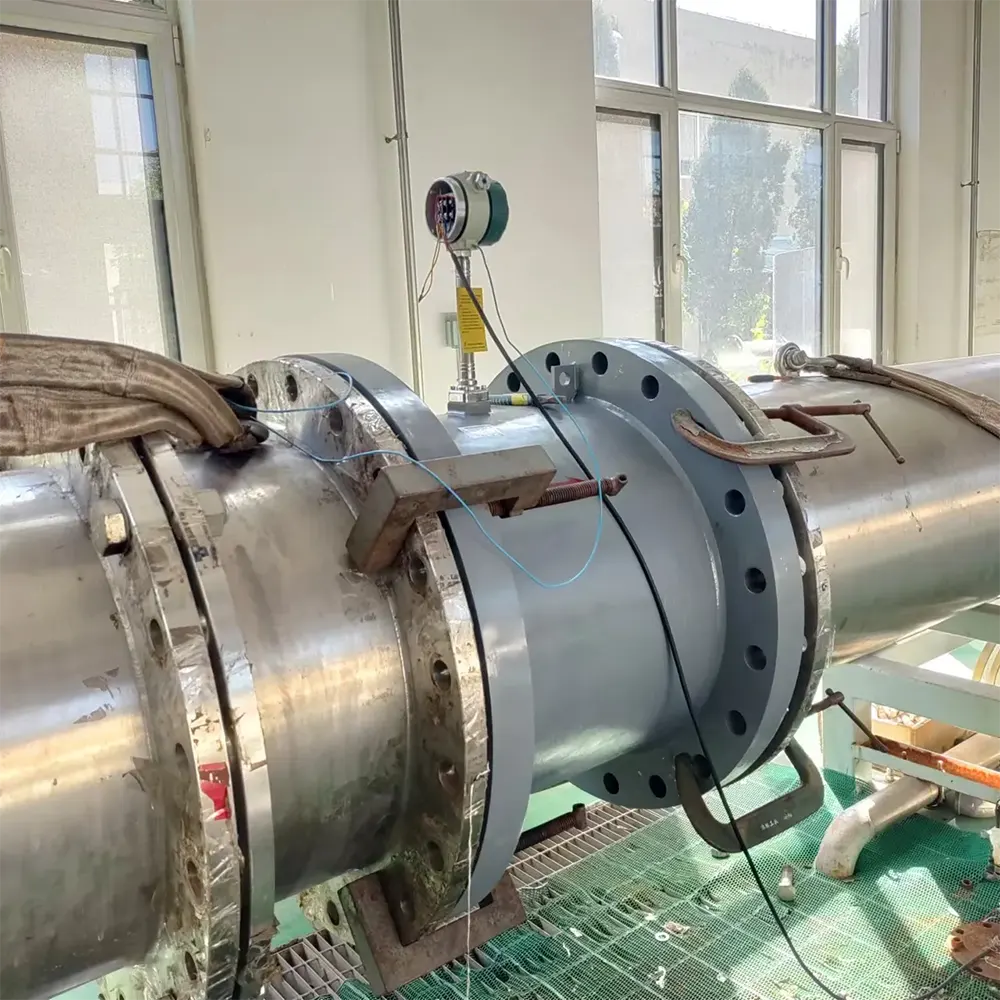

Overview
Vortex flow sensor are good choice in steam-related applications including steam measurement for district energy systems and industrial plants.It also excel for a variety of applications across a wide range of industries including oil and gas, steel and metal , chemical and Pulp and paper, and food and beverage.Features
- Used for medium volume flow measurement, according using external temperature and pressure sensor calculated the mass flow
- For liquids, (wet) gases, saturated and superheated steam (+420°C / +788°F)
- Wide flow range (1:15)
- Standard measurement accuracy: ±1%-±1.5% of Reading
- No moving parts to maintain or repair,easy installation
- Low power consumption,lower pressure loss,good repeatability and stability
- Long-term stability drift-free Piezoelectric sensors
- Pressure pipe container special equipment license and Explosion-proof
- High definition backlight display, English menu, easy to use and access
- Pulse and frequency signal
Measuring principle | Vortex |
Measured media | Liquids, Gases, Steams |
Nominal diameter range | DN15-DN800(½-32″) |
Measured variables | Volume flow, corrected volume flow, temperature |
Accuracy | ±1%, ±1.5% of Reading |
Measuring range | Liquid: 0.5m³/h to 8000 m³/h Steam, gas: 5m³/h to 80000 m³/h |
Max nominal pressure | PN100 |
Max medium temperature | +420°C / +788°F |
Ambient temperature range | -40 to +55°C |
Protection | IP65, IP68 |
Flange standard | GB/ASME/ANSI/DIN/JIS Std |
Display/Operation | 4-line backlit display with touch control, local display |
Outputs | Pulse, 4-20mA, Frequency |
Inputs | PT100/PT1000 |
Communication | HART, RS485 Modbus |
Power supply | DC(12~24)V |
Explosion-proof | Ex db IIC T6 Gb |
